August 3, 2017 by , and Updated September 6th, 2021

Today distributed compute engines are the backbone of many analytic, batch & streaming applications. Spark provides many advanced features (pivot, analytic window functions, etc.) out of the box to transform data. Sometimes there is a need to process hierarchical data or perform hierarchical calculations. Many database vendors provide features like “Recursive CTE’s (Common Table Expressions)”[1] or “connect by”[2] SQL clause to query\transform hierarchical data. CTE’s are also known as recursive queries or parent-child queries. In this post, we will look at how we can address it with Spark.



Hierarchical Data Overview –

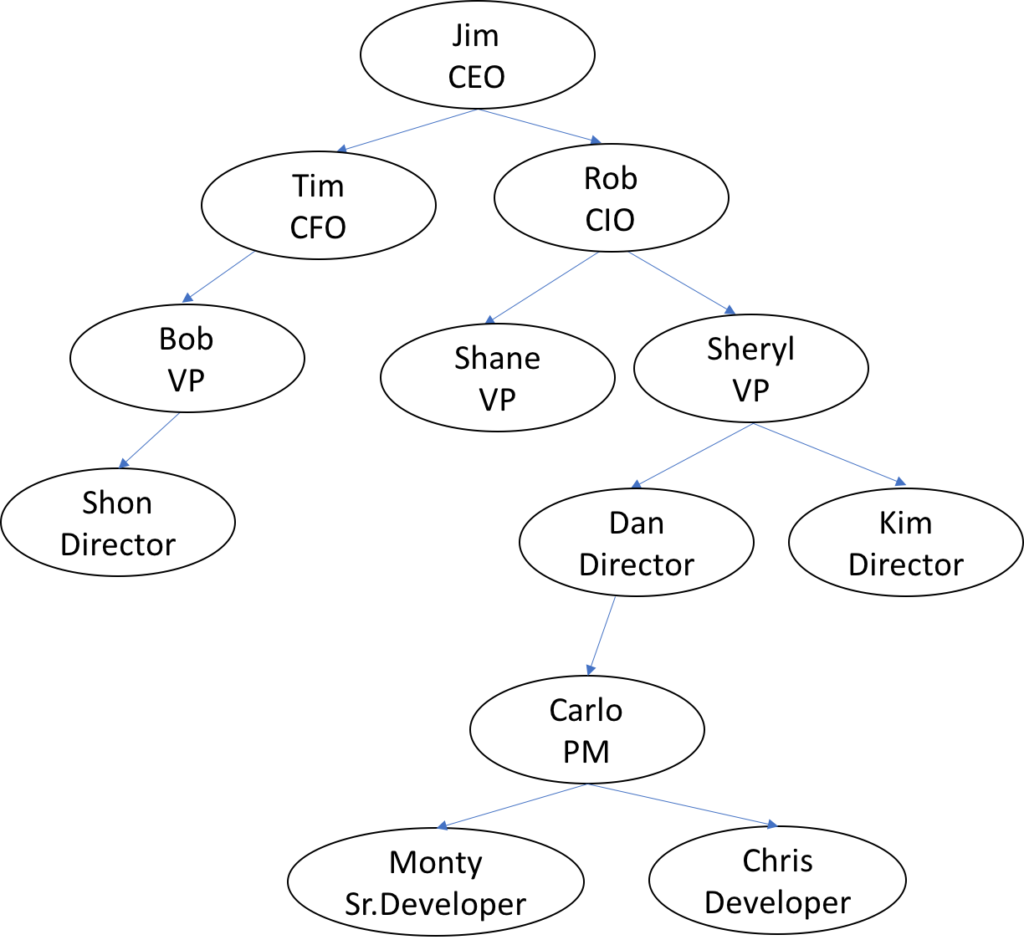

Hierarchical relationships exist where one item of data is the parent of another item. Hierarchical data can be represented using a graph property object model where every row is a vertex(node) and the connection is the edge(relationship) that connects the vertices and columns are the properties of the vertex.



Some Use Cases –

  • Financial Calculations – Subaccounts rolling up into parent account all the way to topmost account
  • Creating Organizational hierarchy – Manager employee relationship with the path
  • Generating Graph of links between web pages with the path
  • Any kind of Iterative computations involving linked data



Challenges –

Querying hierarchical data in a distributed system has some challenges

  • The data is connected but it is distributed across partitions and nodes. The implementation to solve this should be optimized for performing iterations and moving the data (shuffle) as needed.
  • Depth of graph can vary over time – the solution should take care of varying depth and should not enforce users to define it before processing.



Solution –

One of the ways of implementing CTE’s in spark is using Graphx Pregel API.



What is Graphx Pregel API?

Graphx[3] is a spark API for graph and graph-parallel computation. Graph algorithms are iterative in nature and the properties of vertices depend upon the properties of their directly or indirectly (connected via other vertices) connected vertices. Pregel is a vertex-centric graph processing model developed by Google and spark graphX that provides an optimized variant of pregel api[4].



How does Pregel API work?

Pregel API processing consists of executing super steps –

Superstep 0:

  1. Pass the initial message to all the vertices
  2. Send the value as a message to its directly connected vertices

Superstep 1:

  1. Receive messages from the previous steps
  2. Mutate the value
  1. Send the value as a message to its directly connected vertices

Repeat Superstep 1 until there are messages to pass and stop when there are no more messages to be passed.

Hierarchical Data for the use case –

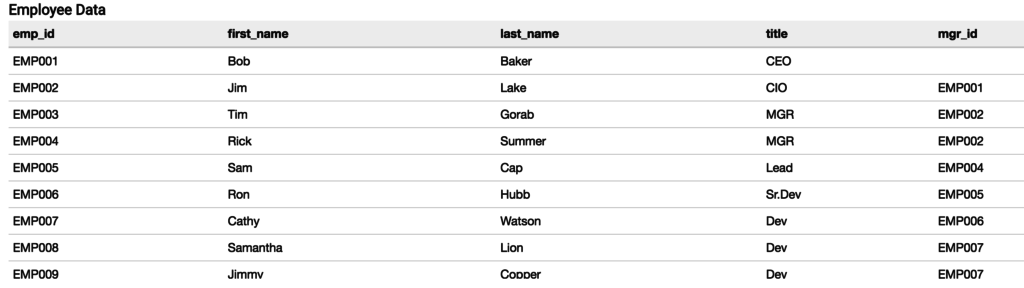

The table below shows sample employee data that we will be used for generating a top-down hierarchy. Here the manager for the employee is represented by the mgr_id field which has emp_id values.

We will add the following columns as part of the processing

Level (Depth)The level at which vertex stands in the hierarchy
PathThe path from the topmost vertex to the current vertex in the hierarchy
RootThe topmost vertex in the hierarchy, useful when multiple hierarchies exist in the dataset
IscyclicIn case if there is bad data, a cyclic relationship exists, then flag it
IsleafIf a vertex has no parent, flag it



Code –

// The code below demonstrates use of Graphx Pregel API - Scala 2.11+

// functions to build the top down hierarchy

//setup & call the pregel api
def calcTopLevelHierarcy(vertexDF: DataFrame, edgeDF: DataFrame): RDD[(Any,(Int,Any,String,Int,Int))] = {

// create the vertex RDD
// primary key, root, path
val verticesRDD = vertexDF
  .rdd
  .map{x=> (x.get(0),x.get(1) , x.get(2))}
  .map{ x => (MurmurHash3.stringHash(x._1.toString).toLong, ( x._1.asInstanceOf[Any], x._2.asInstanceOf[Any] , x._3.asInstanceOf[String]) ) }

// create the edge RDD
// top down relationship
val EdgesRDD = edgeDF.rdd.map{x=> (x.get(0),x.get(1))}
  .map{ x => Edge(MurmurHash3.stringHash(x._1.toString).toLong,MurmurHash3.stringHash(x._2.toString).toLong,"topdown" )}

// create graph
val graph = Graph(verticesRDD, EdgesRDD).cache()

val pathSeperator = """/"""

// initialize id,level,root,path,iscyclic, isleaf
val initialMsg = (0L,0,0.asInstanceOf[Any],List("dummy"),0,1)

// add more dummy attributes to the vertices - id, level, root, path, isCyclic, existing value of current vertex to build path, isleaf, pk
val initialGraph = graph.mapVertices((id, v) => (id,0,v._2,List(v._3),0,v._3,1,v._1) )

val hrchyRDD = initialGraph.pregel(initialMsg,
  Int.MaxValue,
  EdgeDirection.Out)(
  setMsg,
  sendMsg,
  mergeMsg)


// build the path from the list
val hrchyOutRDD = hrchyRDD.vertices.map{case(id,v) => (v._8,(v._2,v._3,pathSeperator + v._4.reverse.mkString(pathSeperator),v._5, v._7 )) }

  hrchyOutRDD

}




//mutate the value of the vertices
def setMsg(vertexId: VertexId, value: (Long,Int,Any,List[String], Int,String,Int,Any), message: (Long,Int, Any,List[String],Int,Int)): (Long,Int, Any,List[String],Int,String,Int,Any) = {
  if (message._2 < 1) { //superstep 0 - initialize
    (value._1,value._2+1,value._3,value._4,value._5,value._6,value._7,value._8)
  } else if ( message._5 == 1) { // set isCyclic
    (value._1, value._2, value._3, value._4, message._5, value._6, value._7,value._8)
  } else if ( message._6 == 0 ) { // set isleaf
    (value._1, value._2, value._3, value._4, value._5, value._6, message._6,value._8)
  } else { // set new values
    ( message._1,value._2+1, message._3, value._6 :: message._4 , value._5,value._6,value._7,value._8)
  }
}



// send the value to vertices
def sendMsg(triplet: EdgeTriplet[(Long,Int,Any,List[String],Int,String,Int,Any), _]): Iterator[(VertexId, (Long,Int,Any,List[String],Int,Int))] = {
  val sourceVertex = triplet.srcAttr
  val destinationVertex = triplet.dstAttr
// check for icyclic
 if (sourceVertex._1 == triplet.dstId || sourceVertex._1 == destinationVertex._1)
    if (destinationVertex._5==0) { //set iscyclic
      Iterator((triplet.dstId, (sourceVertex._1, sourceVertex._2, sourceVertex._3,sourceVertex._4, 1,sourceVertex._7)))
    } else {
     Iterator.empty
    }
  else {
    if (sourceVertex._7==1) //is NOT leaf
    {
      Iterator((triplet.srcId, (sourceVertex._1,sourceVertex._2,sourceVertex._3, sourceVertex._4 ,0, 0 )))
    }
    else { // set new values
      Iterator((triplet.dstId, (sourceVertex._1, sourceVertex._2, sourceVertex._3, sourceVertex._4, 0, 1)))
    }
  }
}



// receive the values from all connected vertices
def mergeMsg(msg1: (Long,Int,Any,List[String],Int,Int), msg2: (Long,Int, Any,List[String],Int,Int)): (Long,Int,Any,List[String],Int,Int) = {
// dummy logic not applicable to the data in this usecase
msg2
}


// Test with some sample data


val empData = Array(
  ("EMP001", "Bob", "Baker", "CEO", null.asInstanceOf[String])
  , ("EMP002", "Jim", "Lake", "CIO", "EMP001")
  , ("EMP003", "Tim", "Gorab", "MGR", "EMP002")
  , ("EMP004", "Rick", "Summer", "MGR", "EMP002")
  , ("EMP005", "Sam", "Cap", "Lead", "EMP004")
  , ("EMP006", "Ron", "Hubb", "Sr.Dev", "EMP005")
  , ("EMP007", "Cathy", "Watson", "Dev", "EMP006")
  , ("EMP008", "Samantha", "Lion", "Dev", "EMP007")
  , ("EMP009", "Jimmy", "Copper", "Dev", "EMP007")
  , ("EMP010", "Shon", "Taylor", "Intern", "EMP009")
)

// create dataframe with some partitions
val empDF = sc.parallelize(empData, 3).toDF("emp_id","first_name","last_name","title","mgr_id").cache()

// primary key , root, path - dataframe to graphx for vertices
val empVertexDF = empDF.selectExpr("emp_id","concat(first_name,' ',last_name)","concat(last_name,' ',first_name)")

// parent to child - dataframe to graphx for edges
val empEdgeDF = empDF.selectExpr("mgr_id","emp_id").filter("mgr_id is not null")

// call the function
val empHirearchyExtDF = calcTopLevelHierarcy(empVertexDF,empEdgeDF)
  .map{ case(pk,(level,root,path,iscyclic,isleaf)) => (pk.asInstanceOf[String],level,root.asInstanceOf[String],path,iscyclic,isleaf)}
  .toDF("emp_id_pk","level","root","path","iscyclic","isleaf").cache()



// extend original table with new columns
val empHirearchyDF = empHirearchyExtDF.join(empDF , empDF.col("emp_id") === empHirearchyExtDF.col("emp_id_pk")).selectExpr("emp_id","first_name","last_name","title","mgr_id","level","root","path","iscyclic","isleaf")

// print
empHirearchyDF.show()

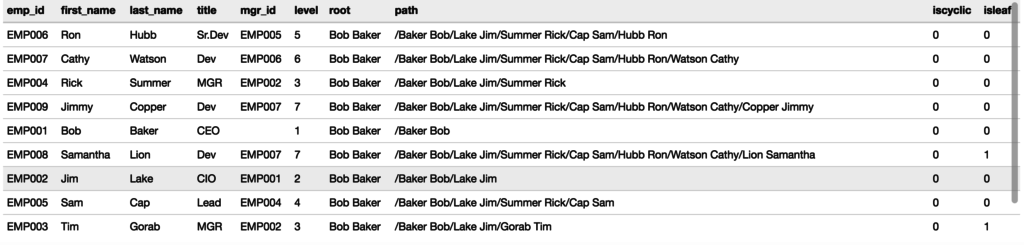

Output –

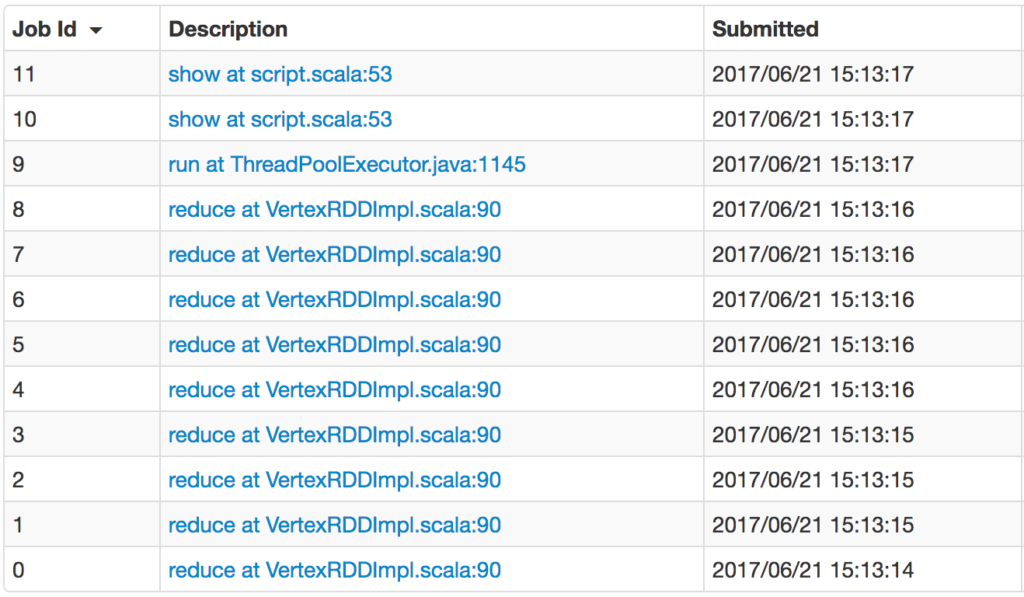

Under the hood –

A spark job breaks up into job(s), stage(s), and task(s). Pregel API internally generates multiple jobs due to its iterative nature. A job is generated every time messages are passed to the vertexes. Each job may end up with multiple shuffles as data can be on different nodes.

Things to watch out for are long RDD lineages that are created when working with huge datasets.



Summary –

Graphx Pregel API is very powerful and can be used in solving problems that are iterative in nature or any graph computation.

References –

  1. SQL Server Recursive CTE –

https://docs.microsoft.com/en-us/previous-versions/sql/sql-server-2008-r2/ms186243(v=sql.105)

2. Oracle connect_by SQL clause –

https://docs.oracle.com/cd/B19306_01/server.102/b14200/queries003.htm

3. Graphx –

https://spark.apache.org/docs/latest/graphx-programming-guide.html

4. Pregel API –

https://spark.apache.org/docs/latest/graphx-programming-guide.html#pregel-api

Other References –

https://spark-summit.org/east-2015/experience-and-lessons-learned-for-large-scale-graph-analysis-using-graphx/

https://mapr.com/blog/how-get-started-using-apache-spark-graphx-scala/
